SPECIFICATIONS
Resolution: centesimal: 0.01mm/0.0005″
millesimal: 0.001/0.00005″
Measuring Range: 0~12.7mm/0.5″
Power: One sliver oxide battery (LR44) with work voltage 1.5V.
Operating temperature: 0℃~40℃
Storage temperature: -20℃~70℃
Relative humidity:≤80%

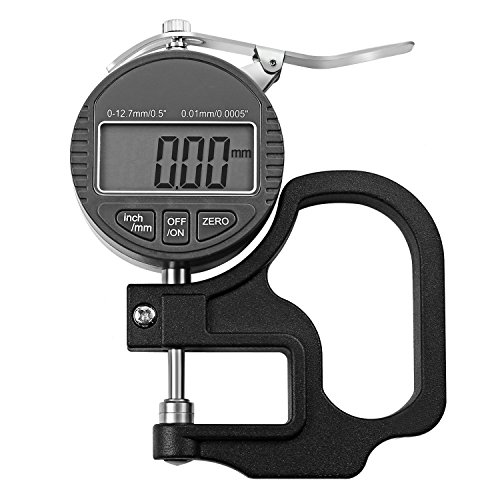

NOMENCLATURE
1.Down measuring surface
2.Up measuring surface
3.Bracket
4.LCD display
5.Lever
6.Zero-setting
7.On/off switch
8.MM/IN switch
9.Battery compartment
10.Data output interface
FUNCTION
1.Zero setting at any position
2.ON/OFF switch
3.Metric/Inch system interchange at any position
4.With data output interface
Usage:
1.Push down the LEVER and clean the measuring surfaces with a soft cloth.
2.Press the ON/OFF switch. The 0.00mm or 0.000mm display appears.
3.When the DOWN MEASURING SURFACE close to the UP MEASURING SURFACE,you should press the ZERO SETTING to let the display show 0.00 or 0.000.
4.Push down the LEVER and make the workpiece between the UP and DOWN MEASURING SURFACE; loose the LEVER then read the display data.
5.Press MM/IN to interchange the measuring unit.
