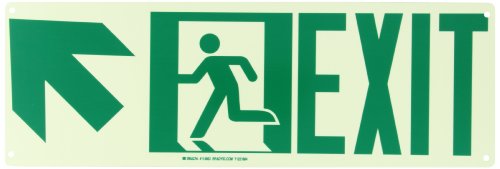

Brady 114663 BradyGlo 7" Height, 21" Width, B-986 High Intensity Aluminum, Safety Green Color Egress Sign, Legend "Exit With Running Man - Arrow left Up"

Description

Brady B-986 bradyglo metal sign material is used for exit and directional signs, identification of fire alarms and extinguishers, stairwell identification sign and directional systems for escape or evacuations routes. In accordance with ASTM 2030-99: recommended uses of photoluminescent safety markings. 1 Foot candles (11lux) of fluorescent illumination for 60 minutes, and the minimum luminance shall be 30 milicandelas per square meter at 10 minutes and 5 milicandelas per square meter after 90 minutes. Exit enclosures where photoluminescent exit path markings are installed shall be provided with the minimum means of egress illumination, for at least 60 minutes prior to periods when the building is occupied. Substrate type is photoluminescent polyester film on aluminum. Standard legend colors are black, green and red. Relevant Standards are meets or exceeds the following standards are IBC 2009, IFC 2009, NFPA 101-2009, NFPA 170-2009, ASTM E2073, UL 1994. Abrasion Resistance (Method 5306 of U.S. Federal Test Method Std. No. 191A):CS-10 Wheels, 250 gram weight. Legend withstands up to 250 cycles CS-17 Wheels, 1000g wts. Substrate withstands up to 4000 cycles. Gloss (ASTM D523) is 60 - 116 degree gloss units. Average of expected service life of printed legend is 5 years, Not recommended for outdoor application. Legend is "EXIT (WITH RUNNING MAN - ARROW LEFT UP)". Measures 21" Width by 7" Height, color is safety green.
